BadgesText

Classic

This component allows to display a customizable badge in your UI. It is useful for showing labels, states or tags in a visually distinct way

Usage

class TestScreen : EquinoxScreen<EquinoxViewModel>() {

    @Composable
    override fun ArrangeScreenContent() {
        Column(
            modifier = Modifier
                .fillMaxSize(),
            horizontalAlignment = Alignment.CenterHorizontally,
            verticalArrangement = Arrangement.Center
        ) {
            BadgeText(
                badgeText = "MyBadge",
                badgeColor = MaterialTheme.colorScheme.primary
            )
        }
    }

}

Customization

Check out the table below to apply your customizations to the component:

Property	Description
`modifier`	The `Modifier` to be applied to the component
`shape`	The shape of the badge
`padding`	The padding applied from the text to outside the badge
`elevation`	The elevation to apply to the badge
`fontSize`	The size of glyphs to use when painting the text. See `TextStyle.fontSize`
`fontStyle`	The typeface variant to use when drawing the letters (e.g., italic). See `TextStyle.fontStyle`
`fontWeight`	The typeface thickness to use when painting the text (e.g., `FontWeight.Bold`)
`fontFamily`	The font family to be used when rendering the text. See `TextStyle.fontFamily`
`letterSpacing`	The amount of space to add between each letter. See `TextStyle.letterSpacing`
`textDecoration`	The decorations to paint on the text (e.g., an underline). See `TextStyle.textDecoration`
`lineHeight`	Line height for the `Paragraph` in `TextUnit` unit, e.g. SP or EM. See `TextStyle.lineHeight`
`onTextLayout`	Callback that is executed when a new text layout is calculated. A `TextLayoutResult` object provided contains paragraph info, text size, baselines, and more. Useful for adding decorations or selection highlights around text.
`badgeTextStyle`	The style configuration for the text
`textColor`	The color of the text based on the current `badgeColor`
`onClick`	The callback to invoke when the badge is clicked

Hinted

Badge component with a descriptive hint message

Usage

class TestScreen : EquinoxScreen<EquinoxViewModel>() {

    @Composable
    override fun ArrangeScreenContent() {
        Column(
            modifier = Modifier
                .fillMaxSize(),
            horizontalAlignment = Alignment.CenterHorizontally,
            verticalArrangement = Arrangement.Center
        ) {
            HintedBadgeText(
                badgeText = "MyBadge",
                hintMessage = "An hint!",
                badgeColor = MaterialTheme.colorScheme.primary,
            )
        }
    }

}

Customization

Check out the table below to apply your customizations to the component:

Parameter	Description
`modifier`	The `Modifier` to be applied to the badge component
`shape`	Defines the shape of the badge
`padding`	Padding applied between the text and the outer bounds of the badge
`elevation`	Elevation value applied to the badge
`fontSize`	Size of glyphs used when painting the text. See `TextStyle.fontSize`
`fontStyle`	Typeface variant used when drawing the text (e.g. italic). See `TextStyle.fontStyle`
`fontWeight`	Typeface thickness used when painting the text (e.g. `FontWeight.Bold`)
`fontFamily`	Font family used when rendering the text. See `TextStyle.fontFamily`
`letterSpacing`	Space added between each letter. See `TextStyle.letterSpacing`
`textDecoration`	Decorations painted on the text (e.g. underline). See `TextStyle.textDecoration`
`lineHeight`	Line height for the text paragraph in `TextUnit` (SP or EM). See `TextStyle.lineHeight`
`onTextLayout`	Callback executed when a new text layout is calculated. Provides a `TextLayoutResult` with paragraph info, text size, baselines, and more
`badgeTextStyle`	Style configuration applied to the badge text
`badgeColor`	Background color of the badge
`badgeText`	Text displayed inside the badge
`textColor`	Text color derived from `contentColorFor(badgeColor)`
`positionProvider`	Provider responsible for positioning the hint message
`hintMessage`	Descriptive hint message explaining the badge purpose or meaning
`onClick`	Callback invoked when the badge is clicked

Appearance

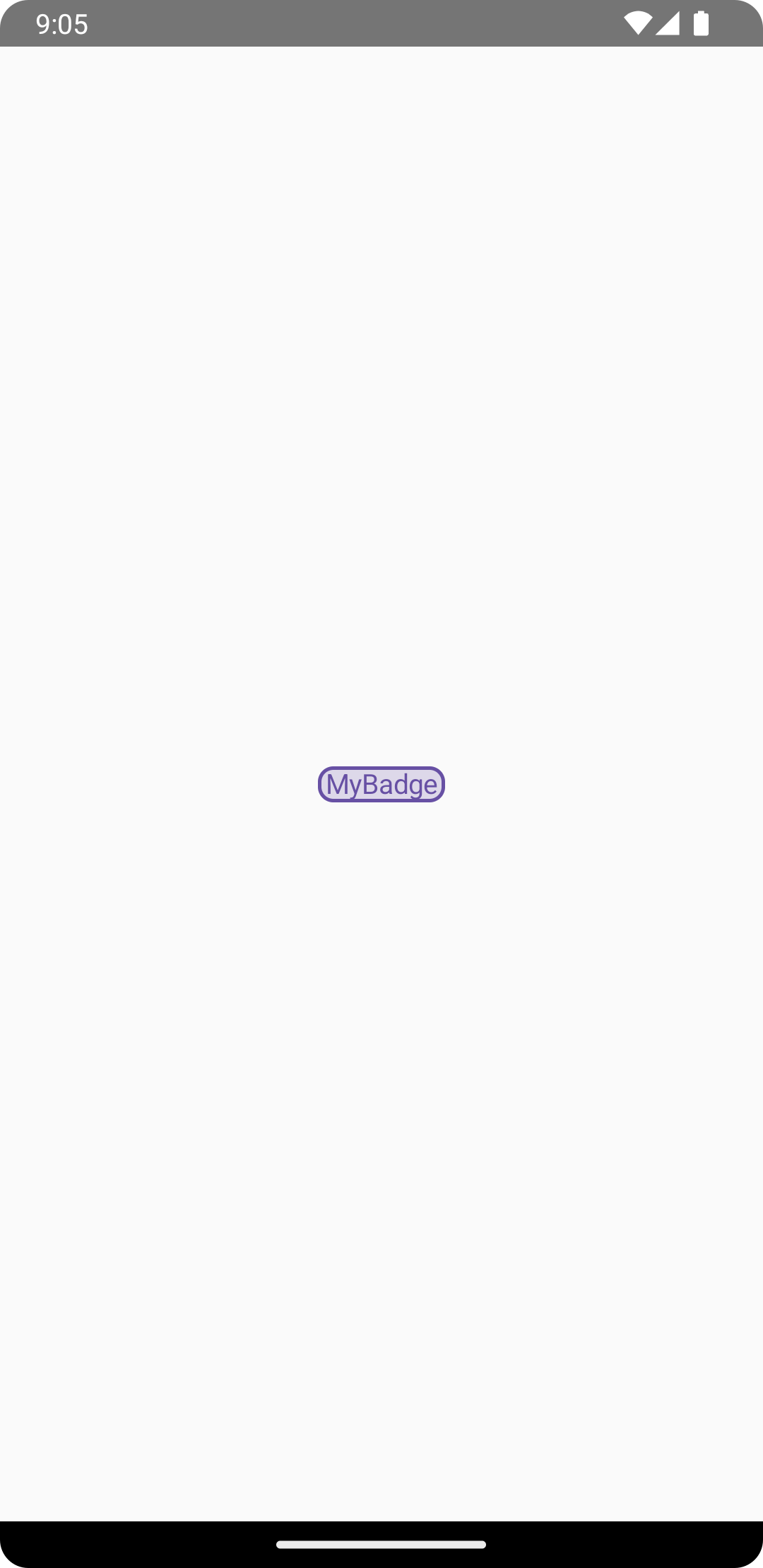

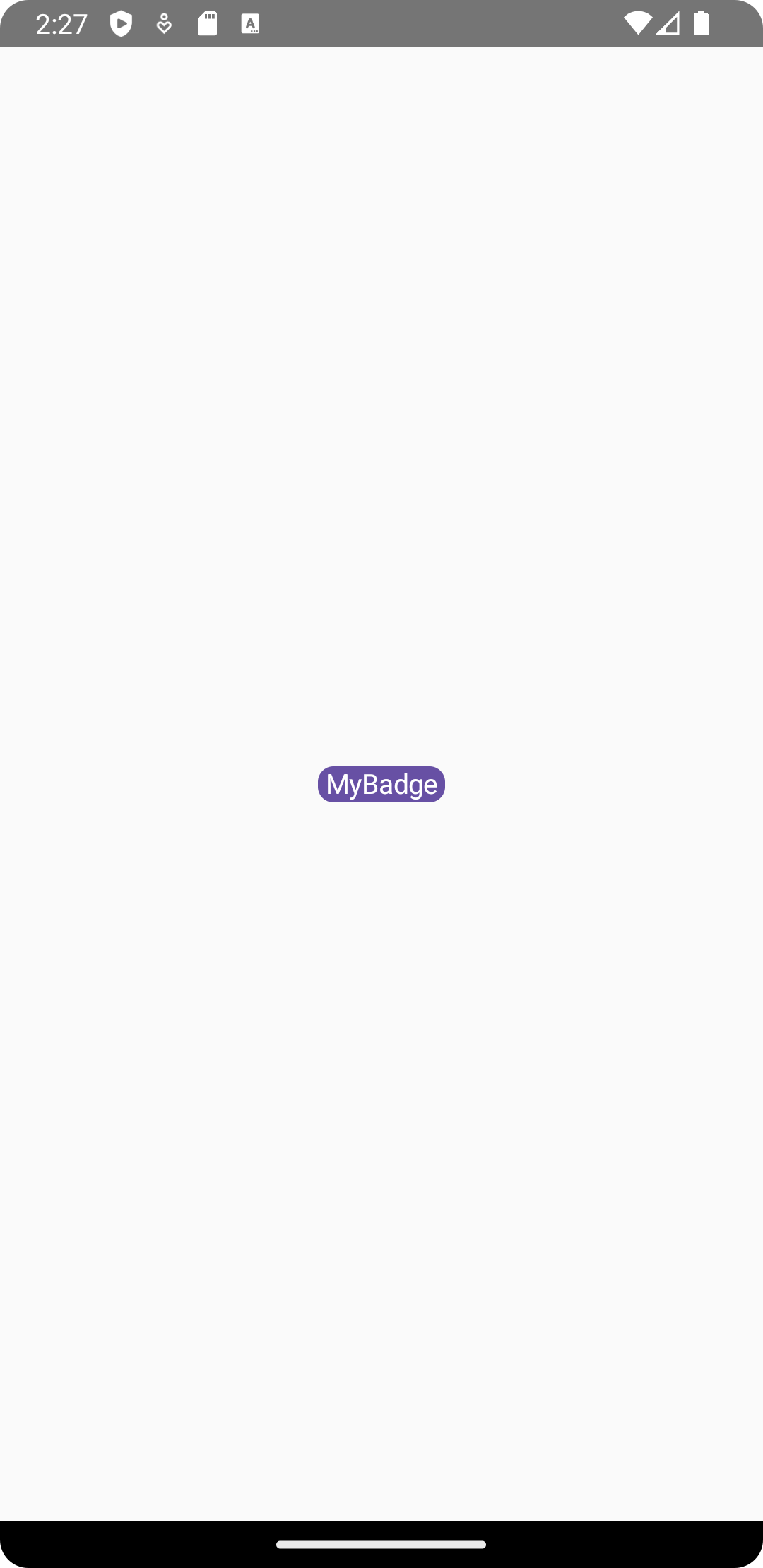

Mobile

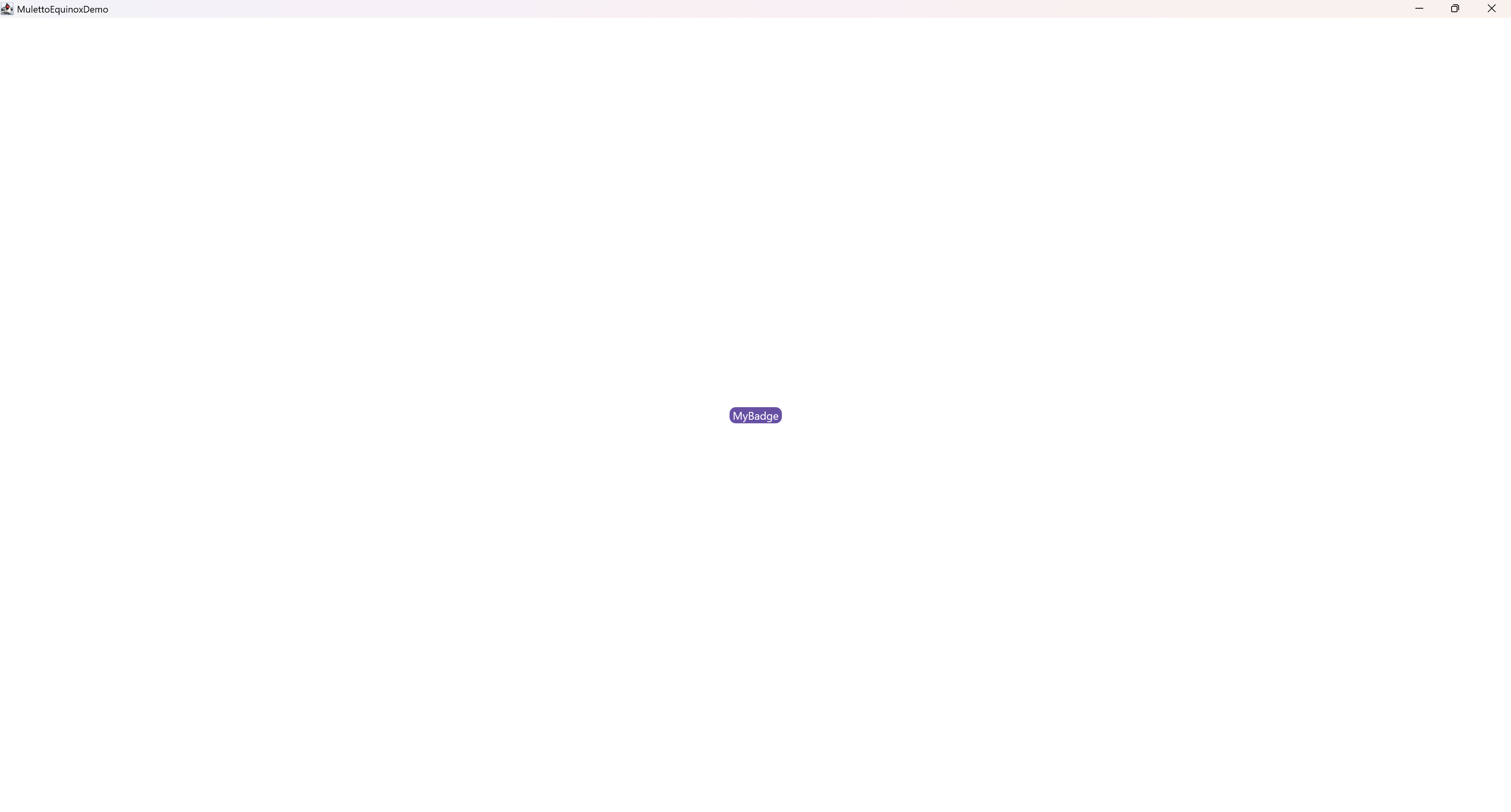

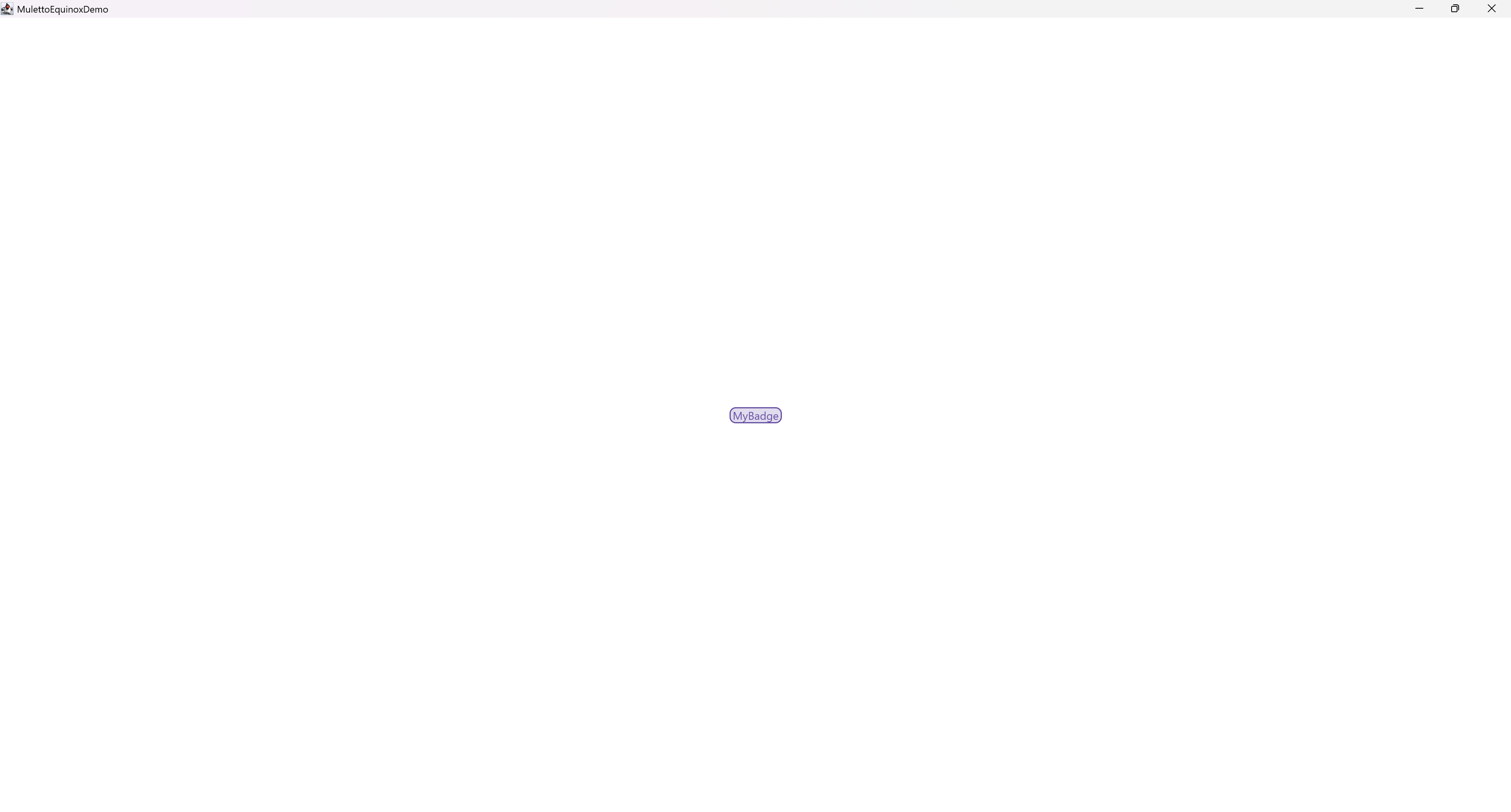

Desktop & Web

Outlined

This component allows to display a customizable badge in your UI similar to the classic badge.
It is useful for showing labels, states or tags in a visually distinct way and giving an additional outlined effect

Usage

class TestScreen : EquinoxScreen<EquinoxViewModel>() {

    @Composable
    override fun ArrangeScreenContent() {
        Column(
            modifier = Modifier
                .fillMaxSize(),
            horizontalAlignment = Alignment.CenterHorizontally,
            verticalArrangement = Arrangement.Center
        ) {
            OutlinedBadgeText(
                badgeText = "MyBadge",
                color = MaterialTheme.colorScheme.primary
            )
        }
    }

}

Customization

Check out the table below to apply your customizations to the component:

Property	Description
`modifier`	The `Modifier` to be applied to the component
`borderWidth`	The width of the border
`shape`	The shape of the badge
`padding`	The padding applied from the text to outside the badge
`fontSize`	The size of glyphs to use when painting the text. See `TextStyle.fontSize`
`fontStyle`	The typeface variant to use when drawing the letters (e.g., italic). See `TextStyle.fontStyle`
`fontWeight`	The typeface thickness to use when painting the text (e.g., `FontWeight.Bold`)
`fontFamily`	The font family to be used when rendering the text. See `TextStyle.fontFamily`
`letterSpacing`	The amount of space to add between each letter. See `TextStyle.letterSpacing`
`textDecoration`	The decorations to paint on the text (e.g., an underline). See `TextStyle.textDecoration`
`lineHeight`	Line height for the `Paragraph` in `TextUnit` unit, e.g. SP or EM. See `TextStyle.lineHeight`
`onTextLayout`	Callback that is executed when a new text layout is calculated. A `TextLayoutResult` object provided contains paragraph info, text size, baselines, and more. Useful for adding decorations or selection highlights around text.
`badgeTextStyle`	The style configuration for the text
`color`	The color to apply to the component, includes the border, background and text
`alpha`	The alpha to apply to give to the badge a translucent effect
`badgeText`	The text displayed on the badge
`onClick`	The callback to invoke when the badge is clicked

Hinted

Outlined badge component with a descriptive hint message

Usage

class TestScreen : EquinoxScreen<EquinoxViewModel>() {

    @Composable
    override fun ArrangeScreenContent() {
        Column(
            modifier = Modifier
                .fillMaxSize(),
            horizontalAlignment = Alignment.CenterHorizontally,
            verticalArrangement = Arrangement.Center
        ) {
            OutlinedHintedBadgeText(
                badgeText = "MyBadge",
                hintMessage = "An hint!",
                color = MaterialTheme.colorScheme.primary,
            )
        }
    }

}

Customization

Check out the table below to apply your customizations to the component:

Parameter	Description
`modifier`	The `Modifier` to be applied to the component
`borderWidth`	Width of the badge outline border
`shape`	Shape of the outlined badge
`padding`	Padding applied between the text and the outer bounds of the badge
`fontSize`	Size of glyphs used when painting the text. See `TextStyle.fontSize`
`fontStyle`	Typeface variant used when drawing the text (e.g. italic). See `TextStyle.fontStyle`
`fontWeight`	Typeface thickness used when painting the text (e.g. `FontWeight.Bold`)
`fontFamily`	Font family used when rendering the text. See `TextStyle.fontFamily`
`letterSpacing`	Space added between each letter. See `TextStyle.letterSpacing`
`textDecoration`	Decorations painted on the text (e.g. underline). See `TextStyle.textDecoration`
`lineHeight`	Line height for the text paragraph in `TextUnit` (SP or EM). See `TextStyle.lineHeight`
`onTextLayout`	Callback executed when a new text layout is calculated. Provides a `TextLayoutResult` containing paragraph info, text size, baselines, and more
`badgeTextStyle`	Style configuration applied to the badge text
`color`	Color applied to the badge, including border, background, and text
`alpha`	Alpha value applied to the badge to achieve a translucent effect
`badgeText`	Text displayed inside the badge
`positionProvider`	Provider responsible for positioning the hint message
`hintMessage`	Descriptive hint message explaining the badge purpose or meaning
`onClick`	Callback invoked when the badge is clicked
